110368G2E

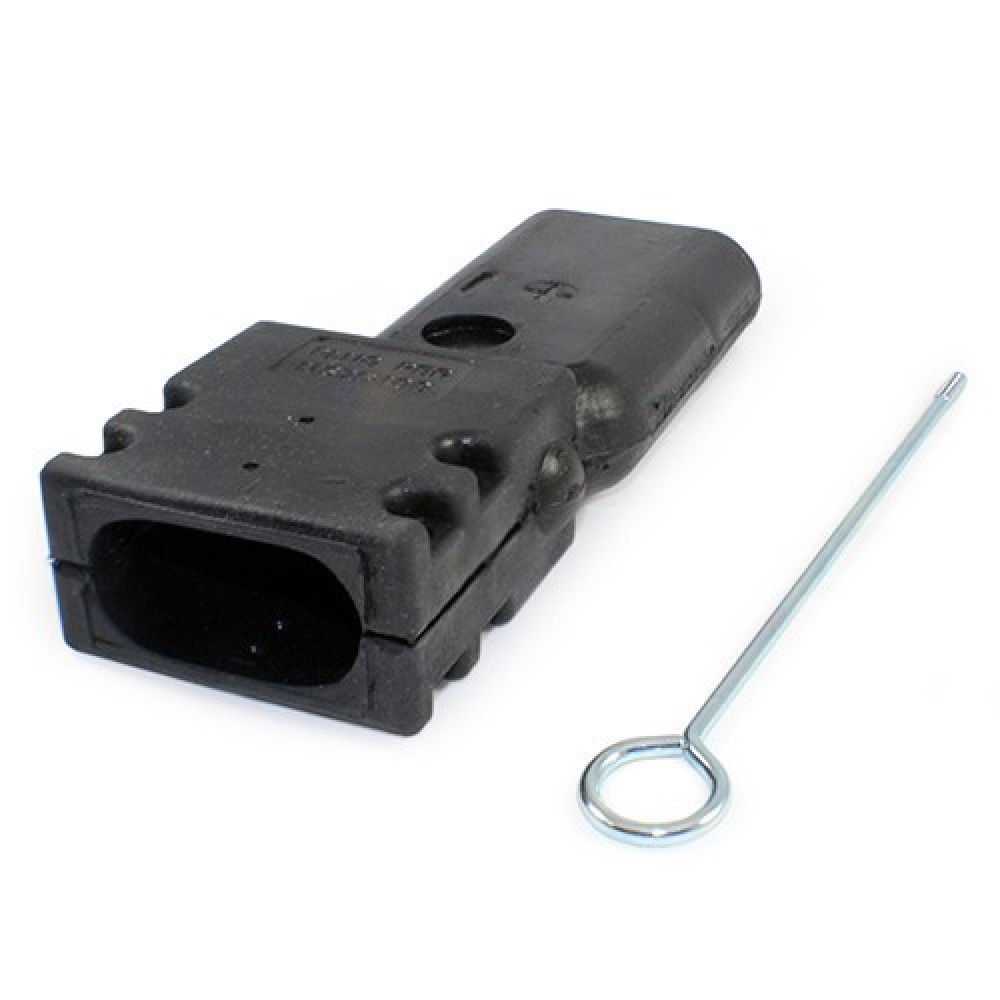

The Attachable® portable plugs and receptacles are molded of a proprietary synthetic elastomer, a compound specially selected for its resistance to moisture and chemicals as well as its ability to stand up under severe wear and tear. Power contacts are of machined copper, silver-plated to reduce contact-resistance. Contact lugs may be either crimped or soldered to cables. Portable receptacles are particularly useful where a portable connection is required or for extending existing cables.

FEATURES:
➢ 30 deg C rise power components, 450 A continuous 1500 A for 1 min, control components, 35 A continuous

TECHNICAL INFORMATION:
➢ MIL-C-5756C

SPECIFICATIONS:
➢ Length: 7-7/8 in
➢ Width: 3-1/8 in
➢ Voltage Rating: 28 VDC
➢ Amperage Rating: 450 A
➢ Number of Poles: 3
➢ Cable Size: 2-4/0 AWG
➢ Number of Conductors: 1
➢ Temperature Rating: -50 deg C
➢ Material: Synthetic Rubber
➢ Suitable For Use With: Fixed Wing Aircraft
➢ Domestic/Import: Domestic
