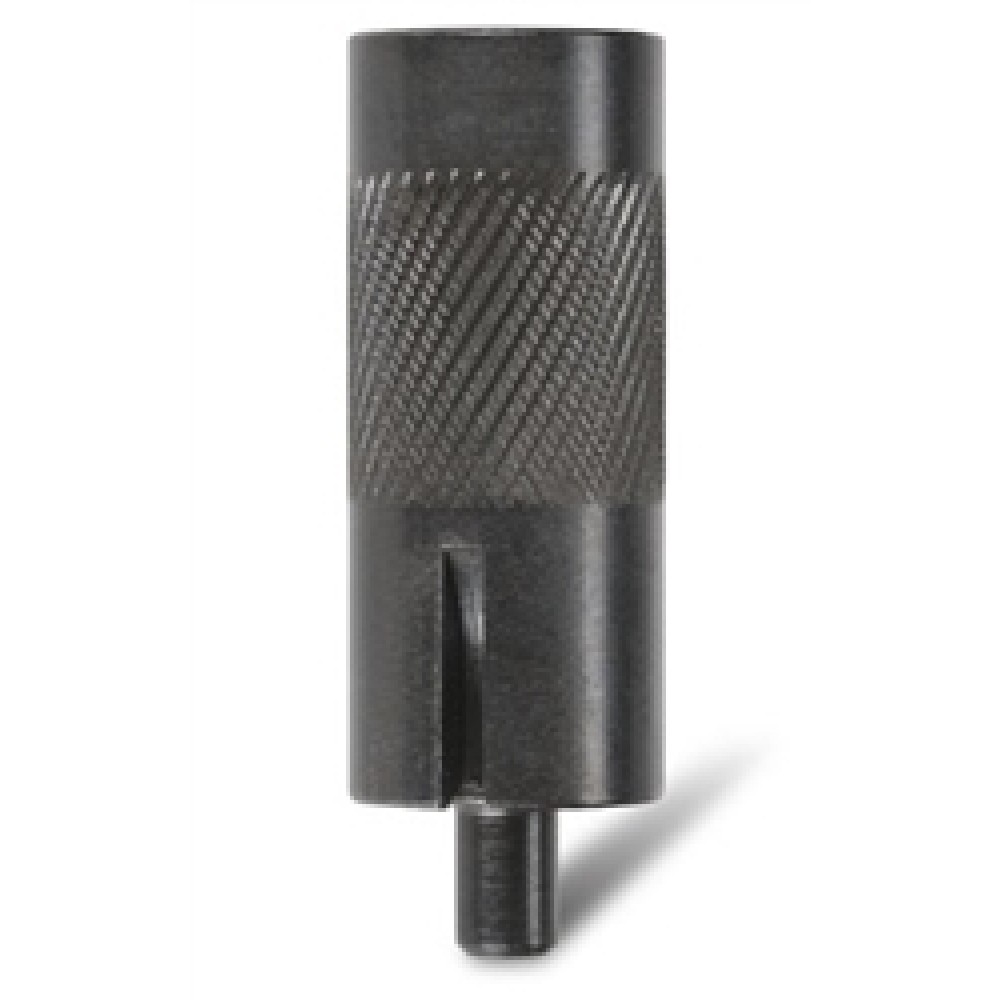

MS51830-202-U-TOOL

    Universal Hand tool used to install key-locking inserts after drilling and tapping hole.
    To use tool:
   ➢ Drill with a standard tap drill and countersink with a standard 82°-100° countersink tool
   ➢ Tap new threads with a standard tap
   ➢ Screw in the insert until it is 0.25-0.70 mm (0.010-0.030 inch) below the surface. Insert keys locate the key-locking insert at the correct depth.
   ➢ Drive keys down with several hammer taps on the specified installation tool.
   ➢ Weight:0.1 lb
